Open Butthead settings
Click Edit layout, select Butthead’s slot, and click Module settings in the dock’s top bar. You can also double-click the slot while editing the layout. Exit layout mode when finished.
Settings choose starting values. The right-click controls edit the current selection.
Existing arrowheads keep their read-back size and mode when you change settings. Switching size modes in the right-click menu loads the saved size for that mode.

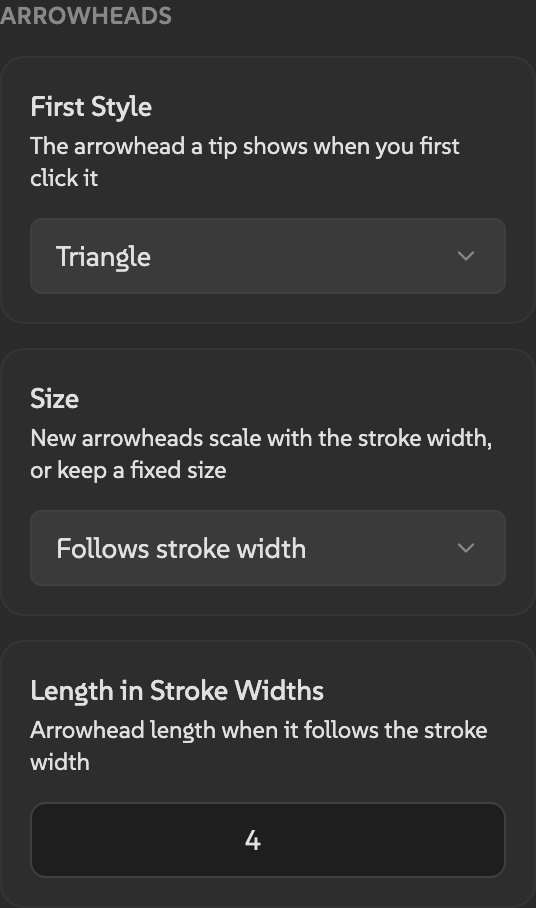

Arrowheads
| Setting | Default | Behavior |
|---|---|---|
| First Style | Triangle | First click on an end without a tip uses this style. Choices are Triangle, Open chevron, Dot, Square, and Bar. |
| Size | Follows stroke width | Starting size mode when no arrowheads are active. Choose Follows stroke width or Fixed pixels. |
| Length in Stroke Widths | 4 | Starting length in stroke widths. Range 1–20, in 0.5 steps. Visible when Size is Follows stroke width. |
| Length in Pixels | 24 | Starting fixed size. Range 2–400. Visible when Size is Fixed pixels. |
Taper
| Setting | Default | Behavior |
|---|---|---|
| Taper Click | 50 | Length written to each chosen end when a Taper click turns it on. Range 1–100. The panel treats this as a percentage; check the stroke’s native length units. |
