Module settings
In Motion Dock, enter Edit layout, select Keymaster, and click Module settings in the top bar. You can also double-click the slot in layout mode or right-click it and choose Module settings.
Settings save as you change them and carry across projects. The module settings and matching More drawer controls change the same saved values.

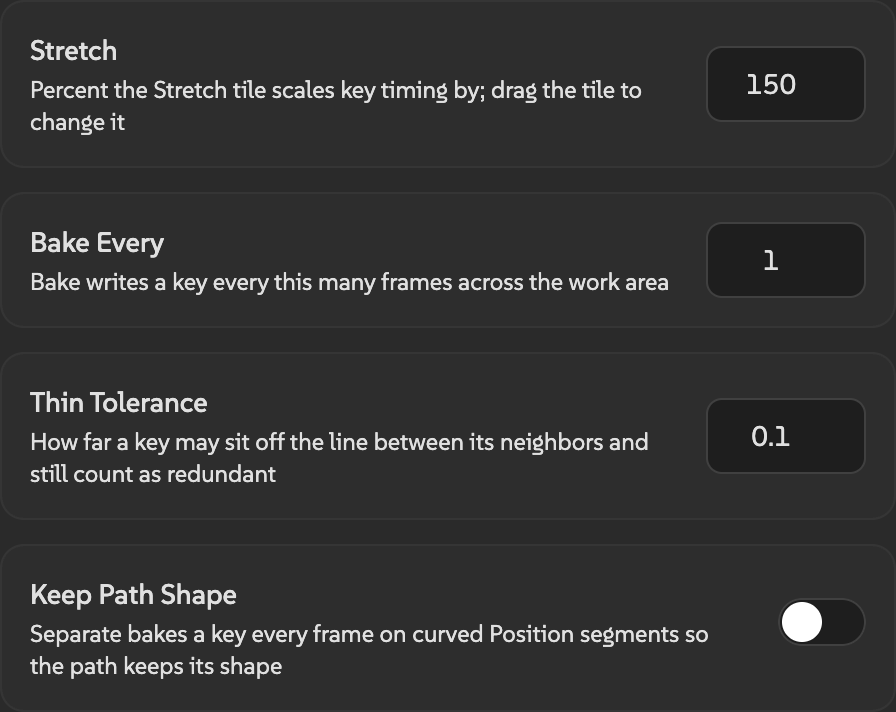

These four settings set the defaults used by the action controls. Changing a setting does not edit the composition.
The drawer calls Keep Path Shape simply Keep path.
| Setting | Default | Allowed values | Used for |
|---|---|---|---|
| Stretch | 150% | 1–1000% | Scales timing on the next Stretch action. The main tile also changes this value when dragged. |
| Bake Every | 1 frame | 1–100 whole frames | Sets the interval between expression samples. |
| Thin Tolerance | 0.1 | 0–1000 | Maximum component difference from the straight-line value in Redundant mode. Uses the property’s units. |
| Keep Path Shape | Off | On or off | Adds frame samples on curved Position segments during Separate. |
Additional saved drawer choices
| Control | Default | Allowed values |
|---|---|---|
| Math operation | + | +, −, ×, ÷, = |
| Math value | 10 | −1,000,000 to 1,000,000. Zero cannot be a divisor. |
| Math axis | All | All, X, Y, Z |
| Thin mode | Redundant | Redundant, Every Nth |
| Every Nth count | 2 | 2–99 whole keys |
Changing a drawer choice saves it for later actions. Opening another project does not reset it.
Entering numbers in the drawer
Press Enter to save and run the row, or click elsewhere to save without running. Blank or invalid text returns to the previous saved value. Pressing Enter on invalid text doesn’t run the row. It nudges and shows Check value instead. A decimal comma is accepted, and a percent sign can be included. Values outside the limits are clamped. Bake intervals and Every Nth counts are rounded to whole numbers.
The main Stretch tile’s drag uses 5% steps and a minimum of 5%. The percentage field permits finer values across the full range.
