Main controls
| Control | Action | Default |
|---|---|---|
| Big number | Plays the panel preview. Right-click opens every option. | Shows the end value between previews. |
| From | First value of the count. | 0 |
| To | Last value of the count. | 1000 |
| Ease curves | Choose the motion applied to the count keys. Hover for the name. | Settle |
| Create | Creates a counter at the active comp’s center when there is no supported selected target. | Switch look |
| Apply | Applies to the selected text layer or Odo counter. | One target |
| Create roll / Apply roll | Creates or applies rolling digits when Roll is selected or Alt is held. | Off |
| ⋯ | Opens or closes every option. Escape or clicking outside also closes the drawer. | Closed |
| Live dot | Identifies a selected Odo counter being edited live. Hover for its layer name. | Hidden without a counter selected |
After success, the action briefly shows a checkmark and, when there is room, Created or Applied. With the drawer closed, the toast says Counter created or Counting, followed by the formatted range and roll when relevant. Refusal badges and fixes are listed in Troubleshooting.
Type custom prefix and suffix text beside the big number when those fields fit. Otherwise use Text in ⋯. The faint + placeholders beside the preview are text-entry hints, not the positive-sign control.
Quick formatting buttons
These buttons also appear in the options drawer. Right-click a main-panel formatting button to open the drawer.
| Button | Click | Alt-click |
|---|---|---|
| 1,000 | Toggles thousands grouping off or restores the last grouping. | Cycles comma, dot, and space grouping. Dot grouping also selects a decimal comma; comma grouping selects a decimal point. Space grouping keeps the current mark. |
| $ | Removes the current prefix or adds $ when empty. | Cycles $, €, £, ¥. A custom prefix starts the cycle at $. |
| % | Removes the current suffix or adds % when empty. | Same as click. |
| 0.0 | Adds a decimal place, cycling from 4 back to 0. The label reflects the current choice. | Removes a place, cycling from 0 back to 4. |
| Timer icon | Toggles time style off or restores the last time style. | Cycles mm:ss, hh:mm:ss, ss.ff. |
| K | Toggles Compact and Number styles. | Same as click. |
Every option in the drawer
| Row | Choices | Default |
|---|---|---|
| From, To | Start and end values. | 0, 1000 |
| Text | Prefix and suffix, each up to 40 characters. | Empty |
| Group | 1,000, 1.000, 1 000, None | 1,000 |
| Mark | . or , | . |
| Sign | − for negatives only; ± to add a plus to positives. | − |
| Places | 0, 1, 2, 3, 4 decimal places. | 0 |
| Style | 123, 1.2K, mm:ss, h:m:s, ss.ff | 123 |
| Zeros | Minimum digits, from 0 to 12. Values round to a whole number and clamp to this range. | 0 |
| Look | Switch or Roll | Switch |
| Ease curves | Linear, Smooth, Settle, Snappy, Expo | Settle |
| Reset | Restores every format default in this table and switches the look to Switch. Leaves the endpoints and ease unchanged. | No action until clicked |
The formatting guide explains rounding, time units, padding, and examples. The rolling guide covers conversions and Roll’s plain-number restriction.
Numeric fields and modifiers
These gestures work on From, To, and Zeros.
Type ungrouped values such as 1234.5. A comma in numeric entry is treated as a decimal mark, not a thousands separator. Invalid entry leaves the value unchanged.
| Gesture | Result |
|---|---|
| Drag horizontally | Scrubs the value. The step grows with the number’s magnitude. |
| Shift-drag | Uses steps ten times larger. |
| Cmd-drag on Mac / Ctrl-drag on Windows | Uses steps ten times smaller. Takes priority over Shift. |
| Double-click | Opens an exact numeric entry field. |
| Enter or click outside the numeric entry | Commits a valid number. |
| Escape in the numeric entry | Cancels the edit. |
| Alt/Option-click | Resets From to 0, To to 1000, or Zeros to 0. |
| Right-click | Opens Type a value…, Reset to default, Copy value, and Paste value. Copy and paste share a numeric value between Motion Dock controls in the panel. |
Shift-click the main action always creates a new layer. Alt-click requests Roll; combine both modifiers to create a new roll. Cmd/Ctrl has no special main-action behavior.
Different slot sizes

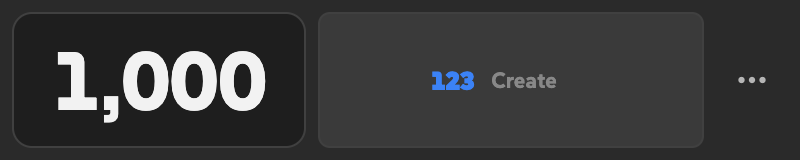

Odo offers half-width and full-width slots. As height shrinks, it hides the ease row, formatting row, and value fields in that order. A short wide slot places the preview beside the controls.
At very small sizes, only the preview, action, and a corner ⋯ remain. The action still uses your current choices. Every option is in the drawer. Right-click the preview to open it.
After Effects effect controls
| Control | Purpose | New counter value |
|---|---|---|
| Value | Keyframed count before multiplication. | Two keys from the chosen From to To, scaled if needed. |
| Multiplier | Multiplies Value to support large totals. | 1, increased automatically for large values. |
| Decimals | Number of decimal places on a text counter. | 0 |
| Grouping | Thousands separator on a text counter. | 1,000 |
| Decimal Mark | Decimal separator on a text counter. | Point . |
| Style | Number, Compact, mm:ss, hh:mm:ss, or ss.ff on a text counter. | Number |
| Sign | Adds plus signs to positive text-counter values. | Off |
| Leading Zeros | Minimum digit count on a text counter. | 0 |
Odo text counters have all these controls. Odo · Roll has only Value and Multiplier; edit its format through the panel. Prefix and suffix are edited through Odo for both looks. See Edit and retime a counter for keyframe read-back and updates.
